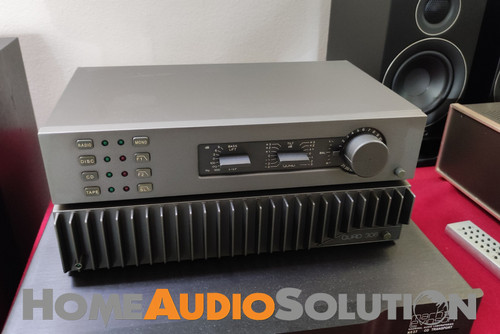

Preamp 34 e Finale 306

Finale 306 Quad
Continuous power output 50w rms per channel into 8 ohms
Input sensitivity 0.375v for full output
Distortion < 0.03% all frequencies and all powers up to rated max
Hum and noise -105dB ref 50 watts
Stability: unconditional for all loads and signals
Suitable for driving Quad ESL-63 electrostatic speakers (but not the ESL-57)
Mains voltage 220 - 250v AC
Input connectors: phono sockets
Speaker connectors: 4mm sockets
Auxilliary unswitched IEC mains socket
Resettable overload trip to protect amplifier

Preamp 34 Quad
Stereo solid-state preamplifier.
Inputs: Phono (MM or optional MC preamp supplied), Tuner, Auxiliary, and Tape Loop.
Choice of 3 HF filter curves.
Tilt control. Bass boost and cut.
Mono/stereo switch. One switched
AC outlet. Maximum output leve;L 500mV.
Dimensions: 12.5" (318mm) W by 10.5" (267mm) D by 2.75" (70mm) H, including knobs and rear plugs.
